TOP 5 CRIMPER BRANDS



A WIDE VARIETY OF INDUSTRY LEADING WIRE CRIMPING TOOLS AVAILABLE AT WIRECARE.COM

INDENT CRIMP

(Pivot & Parallel Jaw Style)

F CRIMP

(Stamped & Formed)

4 / 8 INDENT CRIMP

COMPRESSION CRIMP

MODULAR DATA CRIMP

HYDRAULIC CRIMP (TMS)

Indent crimps use an indentor ram to deform the

 barrel This configuration's advantage is that is

  covers a broad range of sizes.

CONFINED CRIMP

The F Crimp is used to close the barrel to confine

 the individual strands. The quality of this crimp is

  excellent overall.

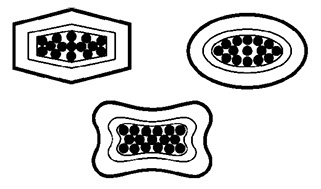

The Confined Crimp provides the best overall

 crimp. It is in the shape of a hexagon, an enclosed

 "C" or a confined quad. The advantage of these

   crimps is uniformity of compression of individual

     strands and outer appearance.

Indent Crimp Diagram
F Crimp Diagram
Confined Crimp Diagram

TOP 7 WIRE CRIMP STYLES

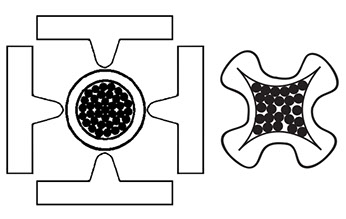

4/ 8 indent crimp diagram

  The 4 / 8 Indent crimp is perfect for wire ranges

26 through 14 AWG.

Compression Crimp Diagram

Compression Crimpers

are ideal for use with

coax cables and a

variety of connectors

including:

     - F

     - BNC

     - RCA



TOP 10 CRIMPERS
Modular Data Crimp Diagram

A Modular Data Crimp assists with installation of

 modular plugs and works with data networking

  cables and phone circuits.

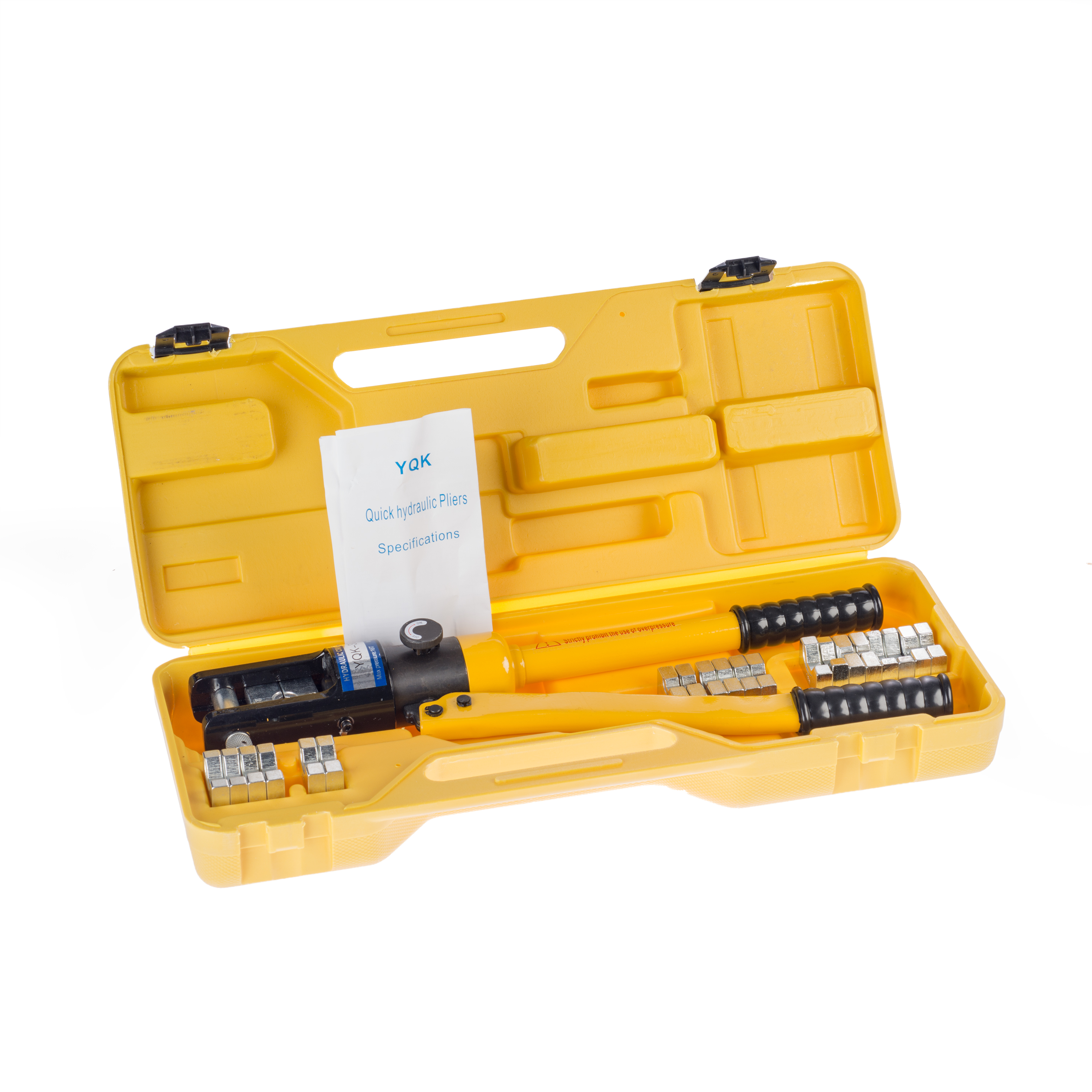

  The Hydraulic Crimp securely crimps fittings at

the ends of hydraulic hoses.

9

Telemaster Modular Plug Ratchet Crimper Tool



Part # II30-696

• Size: RG-11 and RG-45 Plugs

• Manufacturer: IDEAL

• Crimp Style: Modular Data Crimp





Learn More or Purchase





Handheld Pneumatic Crimper



Part # HDT-48-00PN

• Size: Solid Pins size 12 - 20

• Manufacturer: Deutsch

• Crimp Style: 4 Indent Crimp





Learn More or Purchase





Crimper for Insulated Terminals



Part # CSA-0760

• Size: 10 - 22 AWG

• Manufacturer: Pressmaster

• Crimp Style: Confined Crimp





Learn More or Purchase





8

7

Mobile Tool Frame for use with

4300 Die Sets



Part # MCT FRAME

• Size: *Multiple (4300 Die Sets)

• Manufacturer: Pressmaster

• Crimp Style: Parallel Confined Crimp





Learn More or Purchase





CimpAll Crimp Tool



Part # PA8000

• Size: Interchangeable Die Sets

• Manufacturer: Greenlee

• Crimp Style: *Depends of the Die Set





6

Learn More or Purchase





Omniseal ProXL

Compression Tool



Part # II30-793

• Size: Works with F, BNC, RCA, RG-11, & Mini

             Connectors. RG-6, RG-59, & RG-11 Cables

• Manufacturer: IDEAL

• Crimp Style: Compression Crimp





Learn More or Purchase





Field Service Crimper



Part # HDT-1561

• Size: Size 12, 16, & 20 Solid Contacts

• Manufacturer: Deutsch

• Crimp Style: Single Indent Crimp





Learn More or Purchase





5

4

Production Grade Hand Crimper



Part # HDT-50-00

• Size: Size 12 - 20 Solid Contacts

• Manufacturer: Deutsch

• Crimp Style: Single Indent Crimp





Learn More or Purchase





Mil-Spec Crimp Tool Frame



Part # AF8

• Size: Requires Turret Heads Size 12 - 26 AWG

• Manufacturer: DMC

• Crimp Style: 8 Indent Crimp





Learn More or Purchase





3

2

Hand Crimp Tool



Part # HDT-48-00

• Size: 12 - 20 AWG

• Manufacturer: Deutsch

• Crimp Style: 8 Indent Crimp





Learn More or Purchase





1

CRIMPER RENTALS



A WIDE VARIETY OF CRIMPING, STRIPPING, & OTHER TOOLS AVAILABLE  FOR RENT AT WIRECARE.COM

DOES YOUR JOB CALL FOR A TOOL OUTSIDE THE BUDGET?  DO YOU NEED A CRIMPER FOR A ONE TIME PROJECT?

RENTAL TOOLS ARE THE PERFECT SOLUTION



Learn More About Rentals





OmniSeal ProXL Compression Tool Crimper Telemaster Modular Plug Ratchet Crimper Tool
